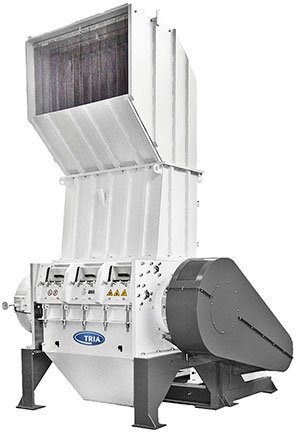

TRIA 90 Series Granulator
Available from TRIA America, Inc.
The TRIA 90 Series is designed for the recovery of heavy and bulky scraps where a high output is required. Significant motor power and a large feed opening provide ease of feeding for even the most unwieldy scraps.
VERSION GR – These granulators are dedicated to scrap recovery from rigid or flexible extrusion or heavy molds. They’re also suitable for second step grinding of pre-crushed pieces.
VERSION TR – These granulators are equipped with traction groups for the in-line and off-line grinding of film, plates and thermoformed sheets.
Granulators dedicated to the grinding of heavy plastics
Grinding chamber with traditional inclined cut to allow the
intake of heavy, bulky scraps
Rotary discs at rotor side
5 knive rotor
Approx. 6,600 (3,000kg)- 11,000 lbs/hr (5,000kg)
Constant knives rotation
Screen with surface equal to 50% of the rotor circumference
Motor power of 215hp(160kw), with option of 270hp
A large feed opening of 60″(1,540mm) x 35″(870mm)
