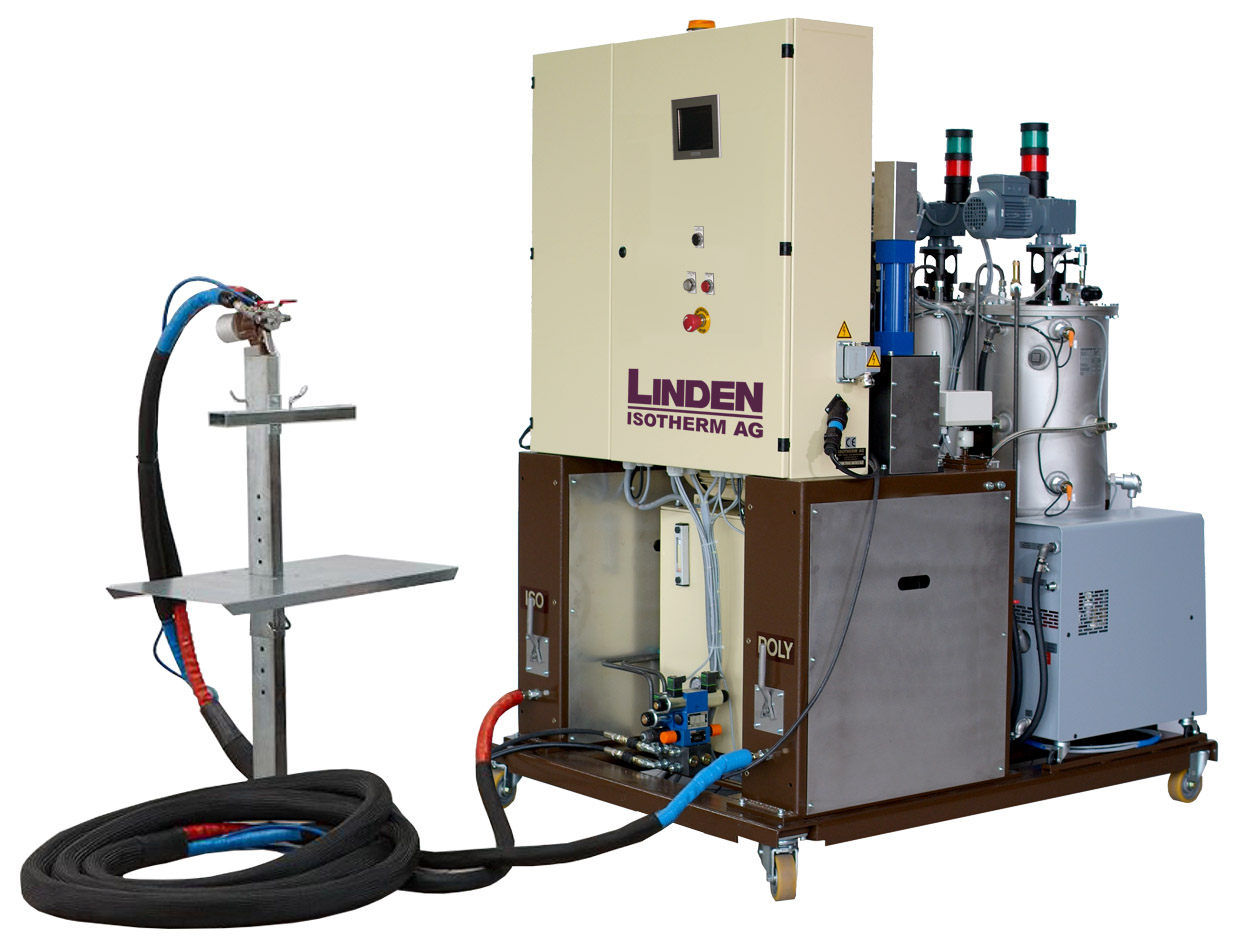

Linden-Isotherm PSM700

PSM 700 varicontrol


Universal machine for spraying purposes, for elastomer and foam applications. The small high-pressure-unit for a large application field. Metering by pulse free vertical piston cylinders, mixing according to the counter flow injection principle. No solvent is needed.


Construction


Compact mobile high-pressure spray-unit with hydraulic drive.

Mixing ratio adjustable 1:1 up to Max 1:4/4:1

Direct control and indication of mixing ratio.

Individual component adjusted heating 0-99°C/32-210°F.

Mixing Head


The flushless head is fully automatic self-cleaning (no solvent flushing). Its conception without joint rings works with practically no servicing. A periodic cleaning is not needed.


Technical Data


Output 0.6 - 10 l/min.

Viscosity range 5000 Cps Max.

Mixing ratio adjustable 1:1 bis 4:1 / 1:4

Dimensions 120 x 80 x 200 cm

Total weight ca. 1100 lbs.


* NOTE: This equipment is engineered for high-end, complex polyurethane applications. It is not cost effective for residential or commercial roof and wall insulation.
