Pin Vise

Pin Vise

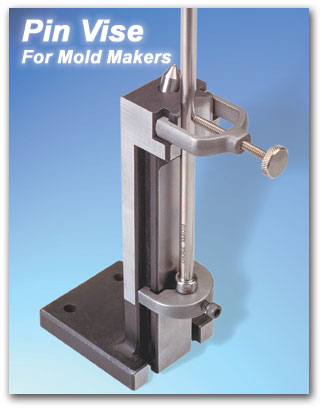

Pin Vise for mold makers
The Pin Vise provides convenient length sizing of ejector pins. With many features that allow the machinist an all in one tool for this very function, easily used on Surface Grinders, EDM, and Milling Machines.

The finished ground surface of the Pin Vise allows the machinist to not only size the length of the pin by surface grinding, but also by side wheeling.

With the vee block located in the center of the two finished sides, and vee clamp contained between those sides, it also allows for easy centering of flats on the pin or on the head.

With the Pin Vise lying either on the side or on the back, cut off prior to sizing takes place with use as a cut off fixture with the greatest of ease.
