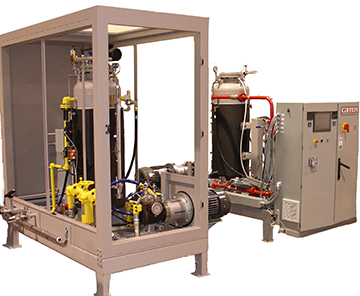

A-system Penta Twin

The Penta Twin is especially designed for flammable blowing agents, such as cyclopentane and other hydrocarbons less harmful to the ozone’s layer than the previous CFCs or HFCs. Special modules are also available for retrofitting existing lines.

Configuration

- Designed for safe use of flammable blowing agents (Cyclopentane
and other hydrocarbons), according to the most strict safety
regulations
- Jacketed and insulated tanks with level control and automatic
refilling, up to 500l
- Heat exchangers and electric heating cartridges in tank jacket
- Recycle stream distributors
- Filters for pump protection
- Digital low/high pressure gauges
- Frequency controlled motors for automatic output and ratio
adjustment
- Closed loop servo control of output and ratio
- Fixed displacement pumps
- Touch screen operator panel
- Calibration of each component directly through the mixing head


Benefits
- Design for heavy duty production
- Very precise and repetitive control of machine parameters
- Easy maintenance and cleaning
- Many customized configurations available
- Multi-heads version available
