Clamp Frames-Standard and Adjustable

Available from Modern Machinery of Beaverton Inc.
Product Menu
View Company Profile View all Products

Product Details

MODERN Machinery’s 5800 Series (Standard) surpasses its competitors with over two times the clamp force. The frame is constructed of heavy extruded aluminum with two inch bore cylinders, three-quarter inch diameter rods, and Viton seals. Attached to each cylinder is a braided hose for extended usage. End clamp bars, along with quick disconnect fittings, make changes easy for smaller molds. Frames can be easily retrofitted into other machines. Available in top or bottom load systems.

MODERN Machinery’s 4-Way Adjustable Clamp Frame System, used in Cut Sheet Thermoforming, is constructed of heavy extruded and cast aluminum, and is adjustable in both directions ranging from maximum mold size down to an eight inch square.

A simple locking mechanism in each corner allows the operator to unlock bars and slide them into position for different mold sizes. No replacement of short bars is necessary, allowing you to adjust to different molds with ease. Since no tools are needed for adjusting this system, machine down time is significantly reduced.

The air cylinders are in a fixed position in the long sheet direction and adjustable in the short direction. The clamp bars have serrated edges for maximum gripping of the plastic sheet. Available with optional 'Same Plane' feature.

Some Features Include:
-Heavy Extruded Aluminum
-2” Bore High-Temp Cylinders
-250lbs of clamp force/cylinder for the use of only
1/4" of material
-Same plane feature available

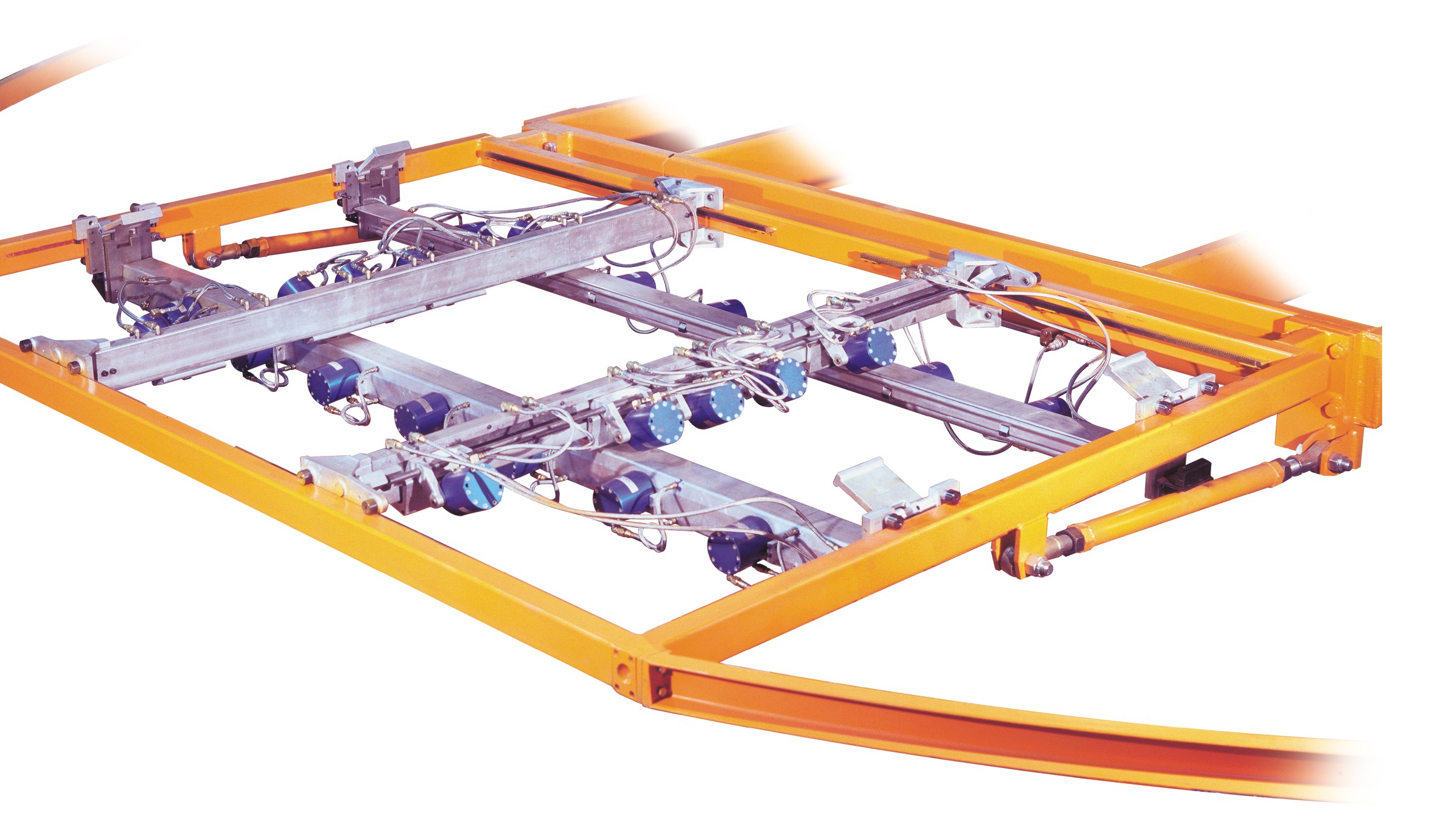

(4-Ways Pictured)
