BenchMike: Bench-top Product Dimension Measurement System

Available from BETA LaserMike Products (NDC Technologies)
Product Menu
View Company Profile View all Products

Product Details

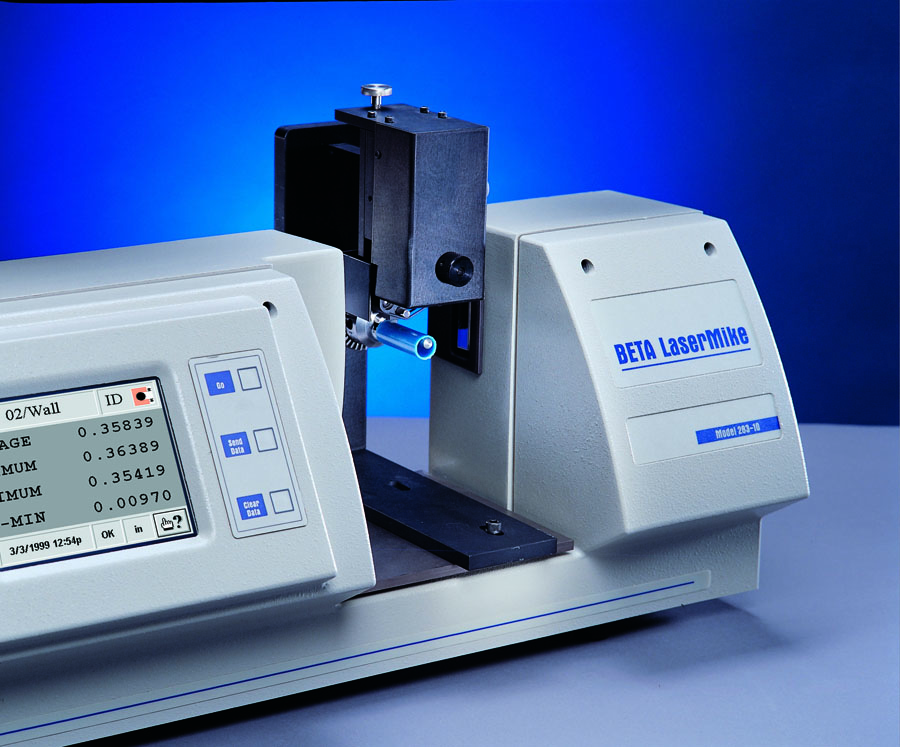

BenchMike from Beta LaserMike provides fast and accurate dimensional measurement of cut product samples. Used in either a Quality Control (QC) laboratory or on the plant floor, BenchMike give operators a simple and repeatable system for measuring product samples and immediately knowing whether they meet specifications within tolerances of less than 1 micron (0.000040 in.).

Features and Benefits include:
• Patented optical design and electronics provide unequaled accuracy and exceptional repeatability
• Measure diameters from 0.100 – 50 mm (0.004 – 2.0 in.) with accuracy to ±0.0009 mm (±0.000040 in.)
• Auto-calibration maintains accuracy throughout the measurement range and adjusts for temperature variation in shop-floor environments
• Non-contact technique eliminates operator-influenced measurement error
• Little or no adjustment is required to measure a wide range of part sizes or dimensions
• Rugged cast housing is sealed against dust and moisture for use in factory-floor environments
• Touch-screen interface and color graphical display provides a simple, yet powerful user interface
• Multiple product types can be stored and recalled at the touch of button
• Integrated I/O allows seamless use of automated part handling and motion control
