CS Series Continuous Extrusion Blow Molding Machine

Available from Rocheleau Tool & Die Co. Inc.
Product Menu
View Company Profile View all Products

Product Details

The CS Series extrusion blow molding systems from Rocheleau, including the CS-1 & CS-2, are designed with a modular format to accommodate a multitude of container sizes, shapes and packaging needs. These systems are designed to meet customer demands with consideration of productivity, space and capital investment.

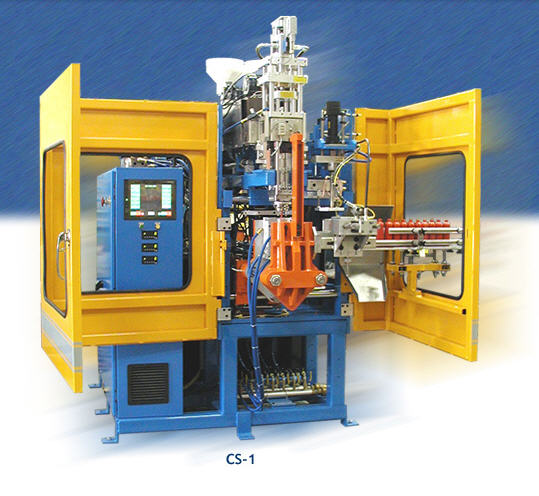

CS-1 Model
The CS-1 continuous extrusion blow molding machine is designed for continuous extrusion bottle production with calibrated neck finish; shuttle clamp with standard bottle de-flash and oriented part take away system.

Output: 50mm (2.0") extruder unit with 120 lbs./hour throughput HDPE.

Configurations: Up to 4-parison die heads, multi-layer co-extrusion systems, bottle de-flash system standard. Production for round, oval, off-center neck bottles.

Options: Optional feed screws and die heads for engineering grade resins.


CS-2 Model
The CS-1 continuous extrusion blow molding machine is designed for continuous extrusion bottle production with calibrated neck finish; shuttle clamp with standard bottle de-flash and oriented part take away system.

Output: 63.5 mm (2.5") extruder unit with 90 kg (200 lbs.) per hour throughput HDPE.

Configurations: Up to 6-parison die heads, multi-layer co-extrusion systems, bottle de-flash system standard. Production for round, oval, off-center neck bottles.

Options: Optional feed screws and die heads for engineering grade resins.
