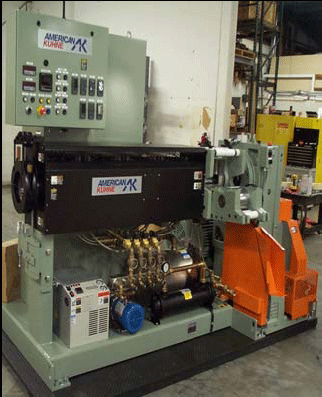

ULTRA R/S Rubber Extruders

Available from American Kuhne
Product Menu
View Company Profile View all Products

Product Details

ULTRA R/S Rubber extruders are fixed horizontal extruders ranging from 0.075" to 6.0" diameter, any L/D, vented or non-vented. ULTRA R/S Rubber extruders come standard with electric heat and bolt-on cast aluminum double-pass water cooling. As an option, customers can provide their own temperature control units for screw, barrel, and die temperature control. The ULTRA R/S is well suited for all extrusion applications including tubing, automotive profiles, sheet, wire & cable, etc. They may be mounted on wheels with or without track, with or without some limited height adjustment. A wide range of options and cost effective customization is available.

ULTRA R/S Rubber extruders feature :
Unique opening roller feeder system
Torque controlled feed roll via pneumatic clutch, mag particle clutch, or direct drive
Electric heat with high capacity water cooling including dual pass cooling passages
Rigid base with leveling pads, lifting eyes, and fork pockets
High quality gear reducer with Class 12 helical gearing
Integral high quality spherical tapered thrust bearing
Full surround, dual axis adjustment barrel support
Heavy duty double or single bolt clamp with titanium nitride coated hinge pins
Easy maintenance wire management system
Temperature controllers with automatic heater burn-out with audible alarm
Digital pressure indicator with automatic high pressure drive shut-down circuit
Multiple AC vector drive and motor brands to choose from
