AKcent Post Mount Co-Extruders - Full Tilt with "T" Base

Available from American Kuhne

Product Details

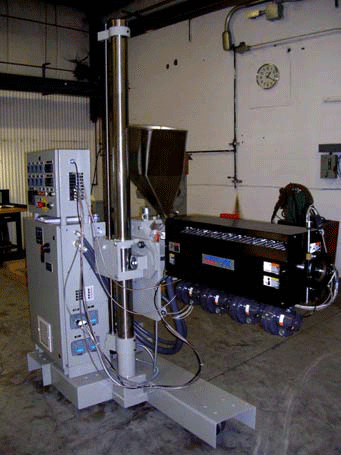

AKcent post mount full tilt extruders range from 0.075" to 1.75" diameter, any L/D. These AKcent extruders are mounted on a tall post with a "T" shaped tripod base. The tall post enables the barrel to fully tilt from horizontal to vertical for flexible co-extrusion installations. The unique "T" base provides a narrow floor footprint and lower center of gravity for easier movement around the plant. AKcent co-extruders are well suited for all extrusion applications including tubing, profiles, wire & cable, etc. They can have belted or direct coupled drive motors. A wide range of options and cost effective customization is available.

These AKcent extruders feature :
"T" Tripod base mounted on casters
Full tilt from horizontal to vertical and anywhere in between
Heavy duty double reduction gear reducer with Class 12 carburized and ground helical gearing
Integral high quality, rear mounted thrust bearing
Feed section casting with full surround cooling and optional field replaceable feed liners
Deep finned cast aluminum, bolt-on heaters with tight fitting cast aluminum shrouds
High capacity barrel cooling with long life blowers
Optional heavy duty single bolt heated clamp with titanium nitride coated hinge pins optional
Temperature controllers with automatic heater burn-out with audible alarm
Digital pressure indicator with automatic high pressure drive shut-down circuit
Multiple AC vector drive and motor brands to choose from
