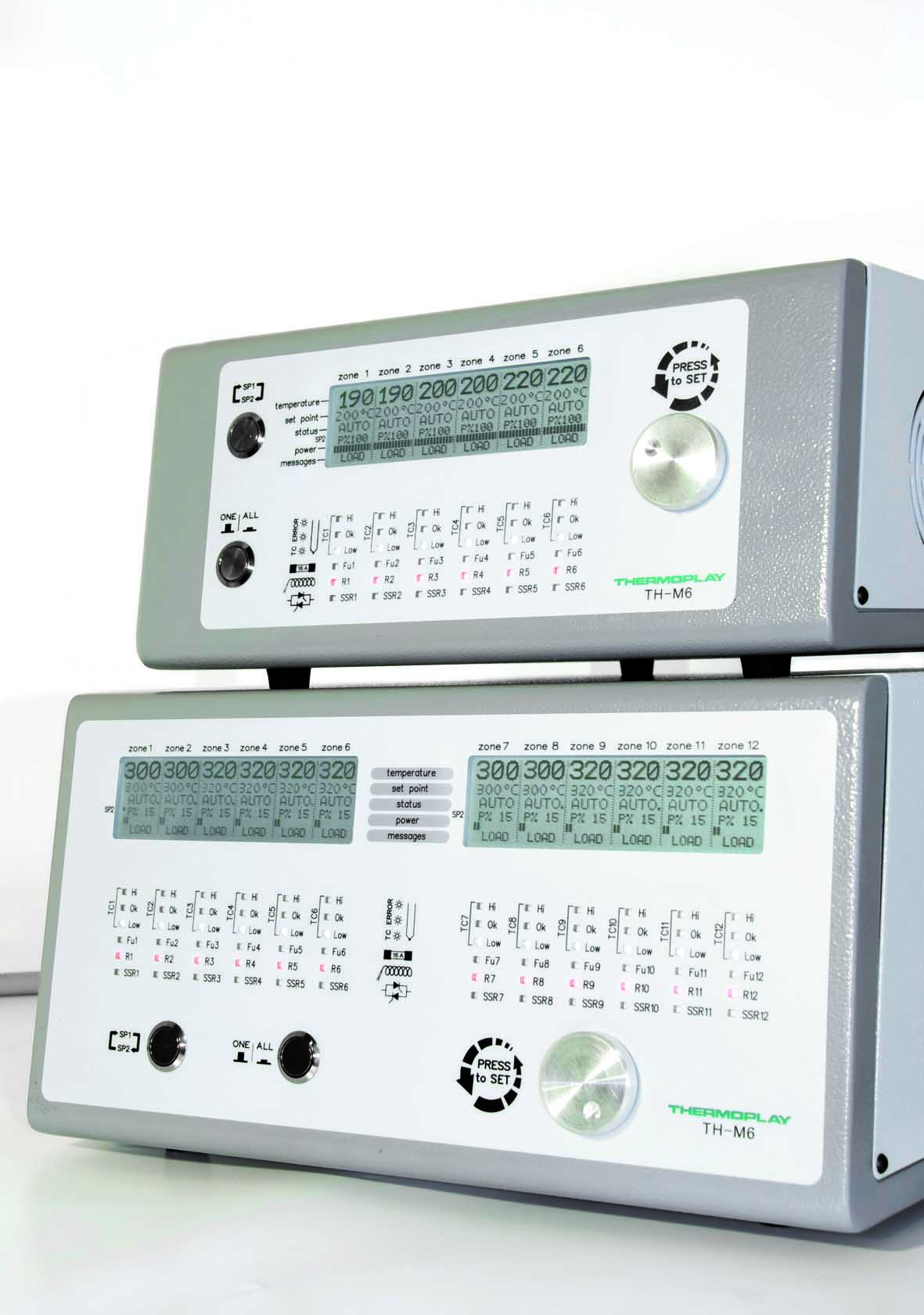

TH-M6 Temperature controller

Available from Thermoplay S.p.A.
Product Menu
View Company Profile View all Products

Product Details

Thermoplay presents the new temperature controller Th-m6 which is provided with important technological improvements in relation to the other models present in the market
Key features:
•Synchronous heating of all the zones despite the different thermal inertia: the delay in the heating start of the nozzles is no more required.
•Autoslave in case of TC failure: each zone can be linked to another with similar thermal behaviour. This is a more accurate alternative to open loop mode (manual mode)
•Plastic leakage alarm: with a continuous monitoring of the power consumption, the leakage from a nozzle is detected and major damage due to the plastic leakage can be avoided
•Collective modification: temperature setting and all the control and alarms parameters can be modified at once on all the zones by pressing a button on the panel
Other important characteristics are:
•16 A max. per zone (3500 W) also contemporary, thanks to the high performance, self ventilated heat sink
•Soft start with phase angle fired modulation: a reliable preheating is guaranteed
•Output powers are not synchronous in order to avoid peaks in power supply line
•Immediate and complete diagnostic: 6 led per zone indicate all the possible failures in the heating loop. In detail the controller recognizes and displays: thermocouple errors (breaking and inverted connection), fuse, heater and solid state relay faults, phase voltage missing
•2 independent set points
