6-16 ZONE SEQUENTIAL CONTROLLER

Product Details

The new sequential controller is designed to optimize the molding process in critical thermoplastics applications. Each shut off valve is detected and controlled by the system, so the end product is without welding lines, stress or weaken, thus meeting the most strict quality standards. With a compact size, this unit is easy to handle and transport. All the electronic circuits are plug-in boards for easy maintenance. A programmable touch screen unit is available for the operator to set, control and monitor the molding process.
Sequential control of pneumatic and hydraulic shut off valve systems
Automatic and manual test operation for the functional control of each single valve

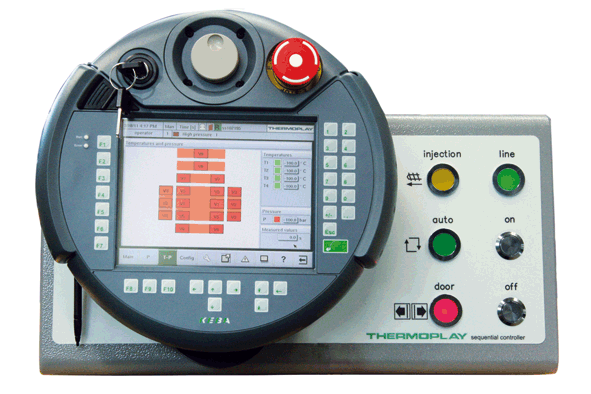

Mobile 6.5" touch screen unit with high resolution and shockproof case
Temperature control of conditioning circuits
Control of line pressure
Temperature and pressure alarms
programming according to: time, screw position, injected volume
Automatic zeroing of the position transducer measurement at the end of the dosage;
Operation without the mobile panel even at start-up
Modification of the operating parameters in “AUTO” mode Handling of recipes and users
Export and import of recipes from USB memory stick
Synoptic view configuration of mold cavity shape, shut off valves position
Synoptic configurations are stored in the recipes
Programming diagnostic
Digital alarm outputs
Multilanguage
Overall dimensions 390x210x480 mm
