NBB Blender Controls Package
Available from TSM Control Systems
Since 2008, TSM has introduced a new blender controls package. This new package, consisting of a new electronics module and remote interface panel, has the latest in control technology.
The new electronics architecture (which has a dedicated a/d converter per load cell and electronic signal filtering) allows TSM to provide greater processing speeds than before. Couple this with a 150 MHz – 32 bit processor and 512k of memory, and you have much improved control response and a blender capable of more demanding applications, faster order changes, simpler recipe selection & changes and increased storage of pre-programmed job recipes.
Some of the superior specs include;
• 10/100 Ethernet port rj-45 for fast data transfers
• 2-8 mbytes sdram
• On board temperature sensor
• 16 high current protected digital outputs
• 8 optically isolated digital inputs
• High precision analog/digital interface;
• Extensive self diagnostic capabilities

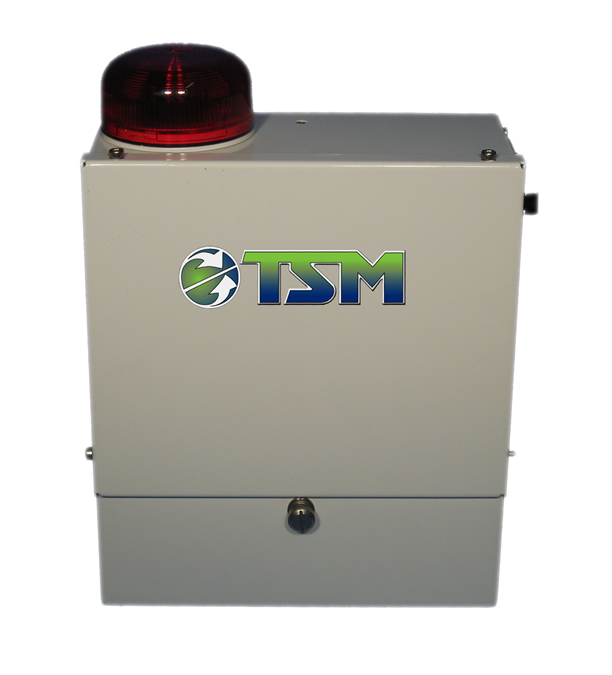

One the principal features of the new electronics package is its flexibility. Not only is the more powerful, but it is also smaller. With advances in technology TSM have been able to provide a very compact electronics solution that comes in a removable modular box. This control module can be easily replaced, and contains all of the system electronics including a 24volt power supply.
The whole electronics is based around ease of use and simple maintenance and as the electronics are built in to a modular design with its own power supply, it is easy to disconnect and replaced without tools to minimise any possible downtime and no electricians are required to carry out this work. This makes it very cost effective for maintenance.
