Width Control System

Product Details

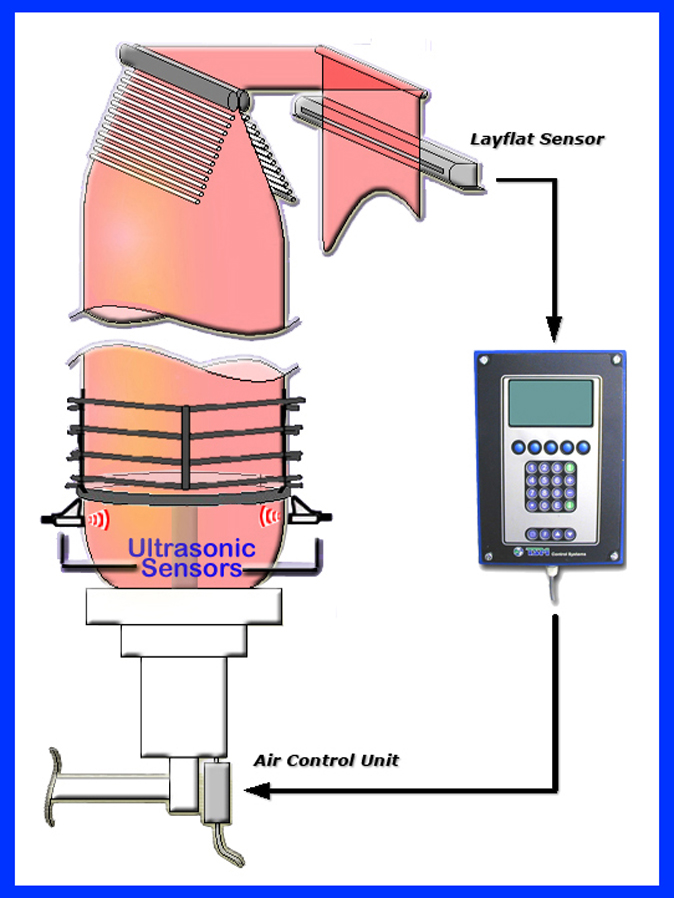

TSM Control Systems has developed the first width control system which combines both the Layflat and Ultrasonic control, to offer the optimum system to the stretch film industry. It computes the width correct to the nearest 0.1 mm. A control action proportional to any error is initiated via the TSM Air Correction Unit, via a fixed air supply or radio control link. This system in particular is ideal for stretch film lines, where layflat is smaller than bubble measurement value. These width measurement systems not only maintain set film widths & chosen TOLERANCE ranges at minimum levels, but they offer the customer a complete package that REDUCES WASTE during start up, prevents width fluctuations caused by temperature changes and is readily expandable and upgradeable. Add to this the SHORTER START UP and change over periods and you have a system that guarantees maximum PAYBACK.

It is suitable for all blown film line configurations up to 10 meters in diameter. Different film types/colours are not an issue.

Optional Protocols are RS232/485, MODBUS and TSM protocol. Further options include remote width readout module, radio control compressor unit for fully rotating dies and standard serial/parallel printer link
