3D Laser Scanner for Large Complex-Shaped Parts

3D Laser Scanner for Large Complex-Shaped Parts

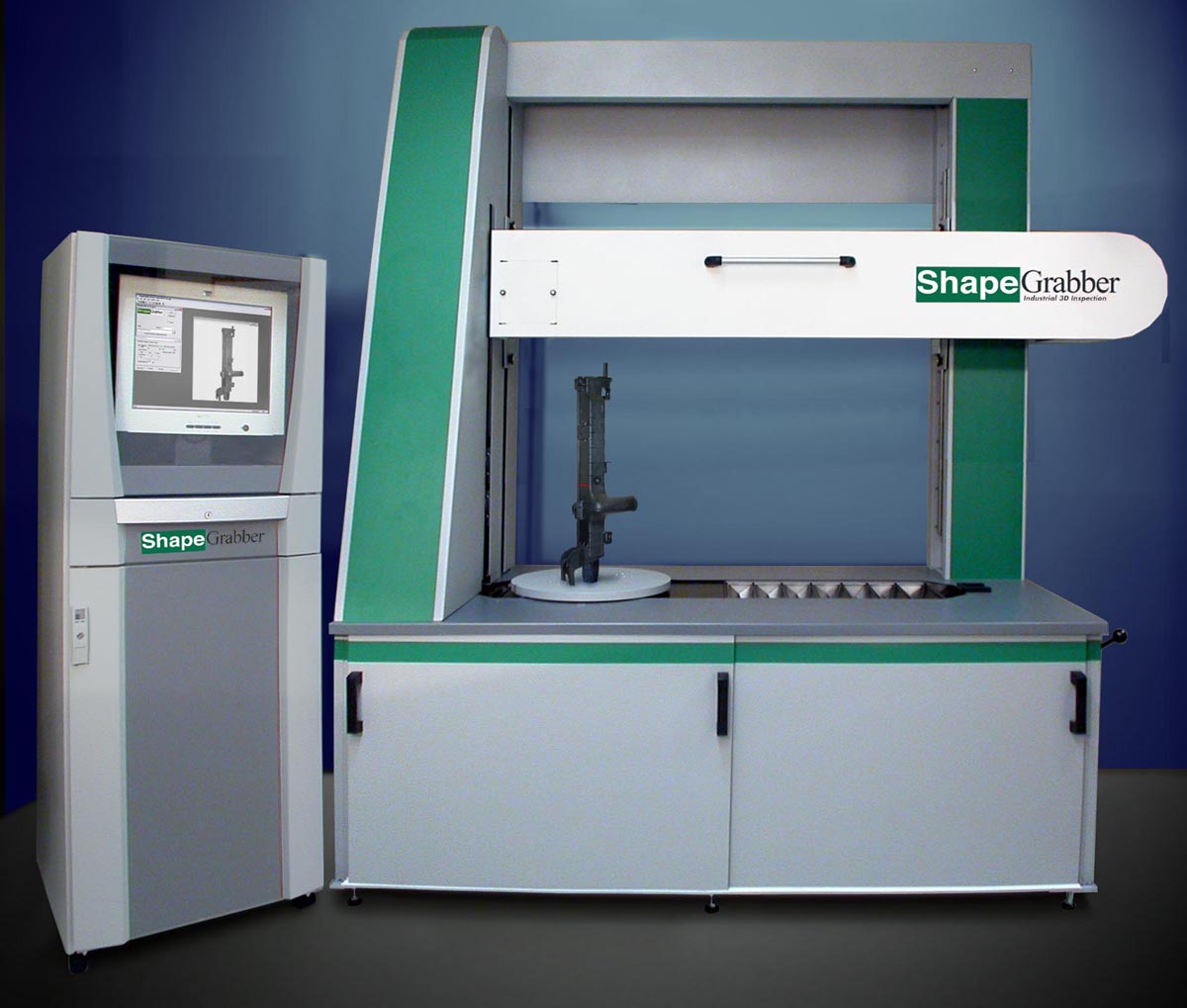

The ShapeGrabber Ai810 3D laser scanner system is ideal for quickly scanning parts that vary in size and shape.

Features:
* Performs automated inspection in minutes as opposed to hours
* Integrates the acquisition, auto alignment and inspection process
* Offers GD&T reports
* Provides full 3D quality control
* Includes Go/No Go capability
* Compatible with a wide variety of materials and colors
* Works in all normal lighting conditions
* Creates digital inspection reports that can be saved and shared

Benefits:
* Reduce inspection time by up to 95%
* Improve production efficiency
* Reduce equipment downtime
* Reduce material waste
* Reduce human inspection error
* Ship fewer defects
* Provide proof that customer's specs are met

Performance Overview:
* 800 mm (30 in) of vertical rail motion
* 1250 mm (48 in) of horizontal rail motion
* High precision rotary table automatically reorients the part being scanned through 360 degrees
* Scan volume depends on scan head used.
Click here for more information
* From 18,000 to 100,000+ points/sec

Complete system platform includes one pair of SG502 scan heads; software for data acquisition, image display and file manipulation; a powerful CAD-class workstation; Geomagic® or Polyworks®; on-site training; NIST traceable system certification; 1 year parts and labor warranty,technical support and software maintenance contract.
