Product Overview

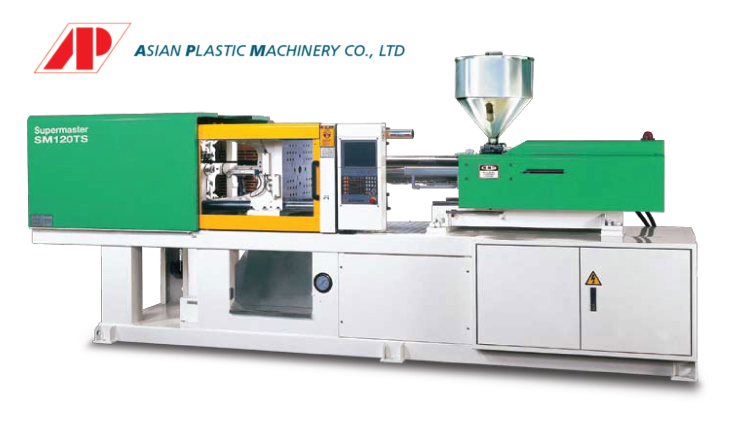

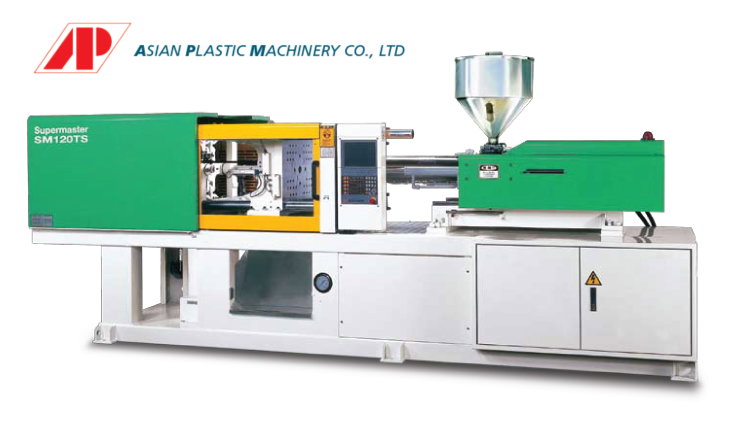

Toggle Injection Molding Machines
55 to 1550 US Ton Clamp Capacity
Energy Efficiency
• Daikin pump, motor and drive system for quality and response
• IPM Interior Permanent Magnet Synchronized Motor
Quiet operation max 68dba
• 60% Energy Savings compared to variable displacement pumps (refer to Energy Comparison graph)
• Comparable Energy Savings to all electric without costly ball screws, belts, bearings etc. (refer to Energy Comparison graph)
Clamp
• 55 to 1550 US ton clamping force
• Fast acting ten pin toggle system with reduced footprint
• Ductile cast iron patented platen design minimizes deflection
• Automatic mold thickness adjustment
• Automatic clamp force setting
• SPI mold mounting, ejector pattern and safety standards
• T-slots for mold mounting 500 ton and above
• Graphite impregnated bronze bushings with auto grease lube and alarm
Injection Unit
• Dual Pull Cylinders
• Linear bearings for sled movement
• Specialty barrels and screws available for all processing needs
• Compact two injection cylinder design
• Piston-Type extruder motor
Control
CDC-2000WIN Computer Controller (Included in Base Price)
• Windows CE Embedded Operating System
• Multilingual Interface with English/Metric Units
• 10.4” (TFT) VGA Color Display
• Help Menus / Alarm Logs/ Change Logs
• 100 Mold File Storage
• USB Interface
• SPC
• PID Temperature Control
• Cold Start Protection
• Injection Plotting
• Process Monitor
• Cycle Progress
• Digitally Set Pressures, Speeds, Times and Strokes
• Mold Protect
• Auto Purge
