C-Series Thermal Press

C-Series Thermal Press

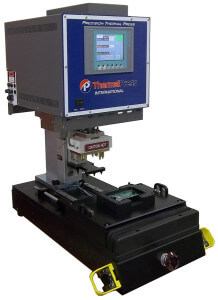

The C-Series is our most popular Thermal Press series. The C-Series Thermal Press has an open “C-Frame” format engineered to accommodate all sizes of parts and assemblies. The C-Series lends itself well to many tooling and part handling options. Like all of our Thermal Press systems, it is fully self-contained and can easily sit on most work benches or tables.

Key Features:

-Open Format “C-Frame” Machine Design
-Available in various heights and configurations to accommodate tall &/or deep parts
-All systems are equipped with Quick Change tooling features
-Standard 4″ Stroke with Adjustable Hard Stop
-Available in Force Ranges from 0-1000 lbs
-Programmable Velocity Control for Precise Actuation (Travel) Speed
-HMI Color Touchscreen for Operation, Setup and Machine Controls (multiple password protection levels)
-Recipe Storage via HMI Touchscreen
-Integrated Digital PID Temperature Controls (Multi-Zone)
-Precision Regulators & Digital Pressure Controls (with Power Boost Option)
-Integrated Digital Timers, Counters and Positional Data
-Programmable Alarms (Operational Lockout on all parameters)
-Two Hand Start Buttons with Anti-Tie Down Safety Circuitry
-OSHA, CE, NFPE and NEC compliant
-3-Point leveling of is built into the C Series Thermal Press
-Test Ports for easy calibration & validations
-Easy rotational adjustment of thermal tooling to align with parts/fixtures
