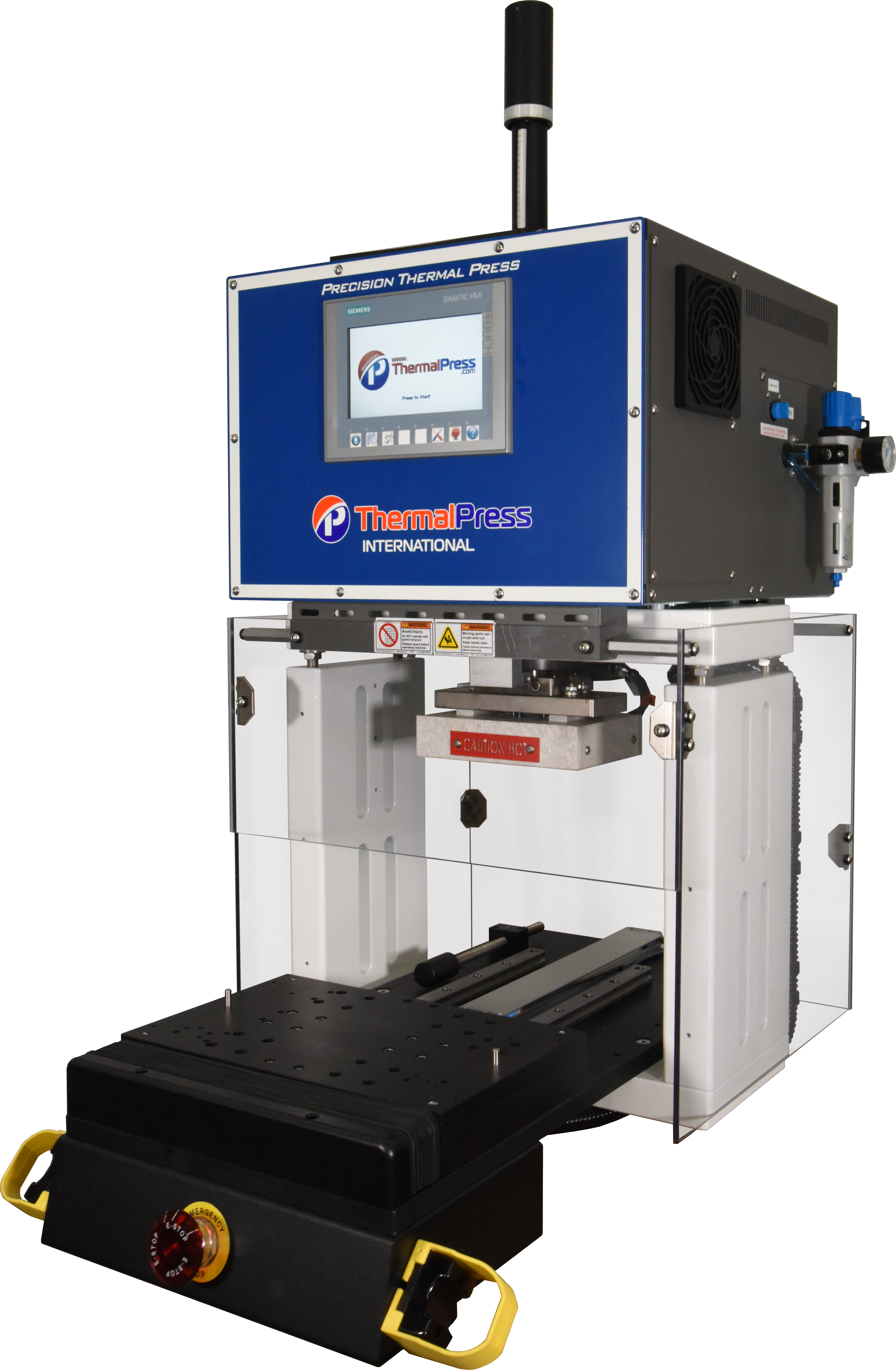

H-Series Thermal Press

H-Series Thermal Press

The H-Series Thermal Press provides higher forces for more demanding applications. The stout H-frame design will maintain planarity even during very high forces applied throughout the machine’s cycle. The H-Series Thermal Press will fit on a standard work bench and easily integrates into existing automation lines, pallet transfer, and conveyor-based systems.

Key Features:
Robust “H-Frame” design for higher force applications
Configurable in various heights and widths to accommodate tall and/or deep parts
Standard 4″ stroke with adjustable hard stop
Available in force ranges from 500 lbs to 3 tons
All systems are equipped with quick change tooling features
Standard 4″ stroke with adjustable hard stop
Base and actuator include features for repeatable change out of tooling packages (hot or cold) without any re-alignments
Programmable velocity control for precise actuation (travel) speed
HMI color touchscreen for operation, setup and machine controls (multiple password protection levels)
Recipe storage via HMI touchscreen
Integrated digital PID temperature controls (multi-zone)
Precision regulators and digital pressure controls (with power boost option)
Integrated digital timers, counters and linear positional data
Programmable alarms (operational lockout on all parameters)
Two hand start buttons with anti-tie down safety circuitry
OSHA, CE, NFPE and NEC compliant
All systems are equipped with quick change tooling features
3-Point leveling of thermal tooling to fixture
Test ports for easy calibration and validations
Easy rotational adjustment of thermal tooling to align with parts/fixtures
