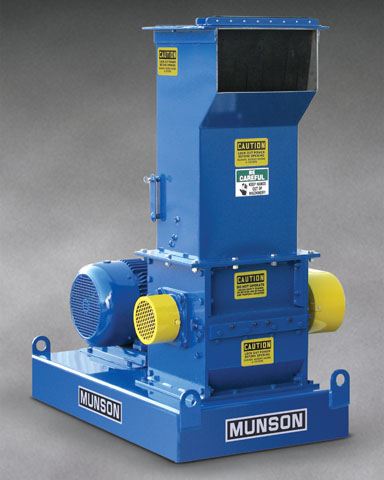

Munson Machinery’s SCC-15-B reduces hard, soft and fibrous materials into controlled particle sizes at high rates with minimal fines. It features a proprietary rotor design comprised of cutter heads attached to a helical array of staggered holders called "interconnected parallelograms" that continuously shear oversize materials against twin, stationary bed knives.
Unlike conventional knife cutters that slice material into strips and require frequent sharpening, this cutter positions carbide tipped cutter heads along the entire shaft, with no frontal gaps between the tips. As a result, material is cut into uniform pieces with minimum imperfections or fines, and little to no generation of heat.
The new cutter has a 15 in. throat width that accommodates up to 30 parallelograms with 60 cutter inserts. Perforations of the bed screen range from 1/32 to 1-1/2-in. diameter and up to 3 in. square, allowing the reduction of materials into uniform particles in sizes down to 20-30 mesh.
Material is fed through the top of an adjustable, double-baffled intake chute, or directly into the front of the chute through a hinged door. An independently powered, variable speed pinch roller is offered for horizontal feeding of material. Discharge is via gravity, pneumatic transition or independently powered belt or screw conveyor.
Applications include a diversity of food, chemical, and plastics products such as grains, foundry materials, regrind and fiberglass insulation.
