Product Overview

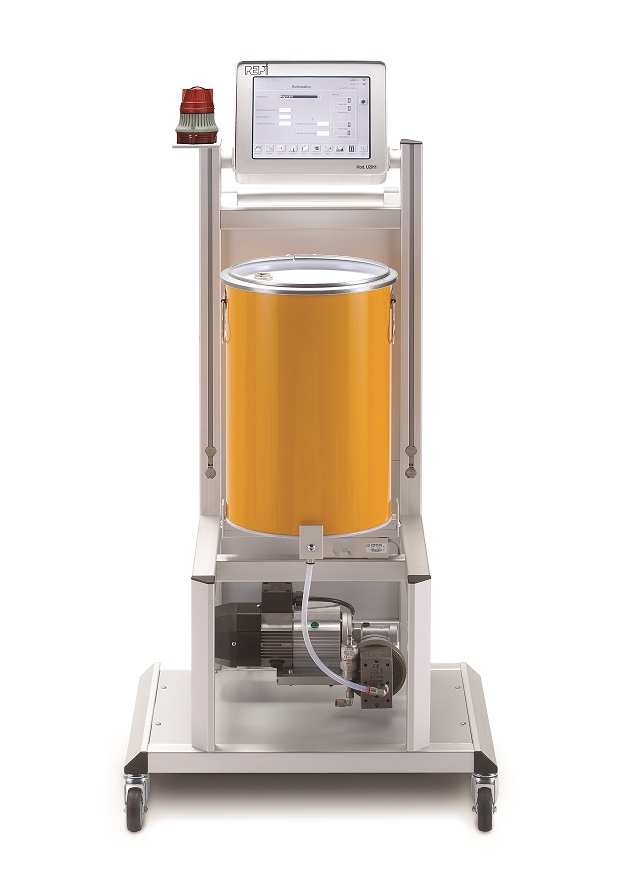

Dosing Unit U2011
The u2011 dosing unit family is the latest development among the REPI electronically controlled dosing systems for thermoplastic applications.
Suitable for injection moulding machines as well as extruders, it is normally fitted with gear pumps ranging from 0,06cc to 10cc. (other sizes available upon request), which ensure high precision and constant dosage of colours or additives. The unit gets the input signal from the machine, thus adapting to the output possible fluctuations, in order to maintain the same dosage throughout the production. The metered quantity can be checked in real time on the unit screen and adjusted if required, while the machine is in motion. The amount of colour in the service drum is constantly checked, and a minimum level can be set at which the unit gives an alarm, allowing the operator to refill the drum.
Pumps are quickly installed and removed, and easily cleaned by the operator for colour change.Calibration of the specific colour or additive is required only once and is a straight-forward and relatively quick operation.
The parameters are stored in the unit memory and can be recalled when needed, by simply pressing the specific program name.
